Exercise 13.2
Make an oblique sketch for each one of the given isometric shapes.
(i)
(iii)
(iv)
The dimensions of a cuboid are 5 cm, 3 cm and 2 cm. Draw three different isometric sketches of this cuboid.
Three cubes each with 2 cm edge are placed side by side to form a cuboid. Sketch an oblique or isometric sketch of this cuboid.
Draw Isometric Sketch
Give (i) an oblique sketch and (ii) an isometric sketch for each of the following.

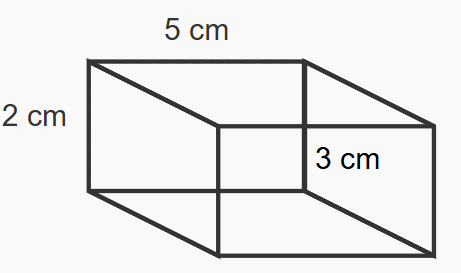

(a) A cuboid of dimensions 5 cm, 3 cm and 2 cm. (Is your sketch unique?)
