Sample Questions
Sec A
(1) The number of common tangents can be drawn to two concentric circles is ................
(2) In a circle, 'O' is the centre, P is the external point and AP is the tangent drawn to the circle from P, OA is the radius. If ∠APO = 30°, then ∠POA = ?
(A) 120° (B) 90° (C) 30° (D) 60°
(3) 'O' is the centre. PA and PB are tangents drawn to the circle from point P. If angle between the tangents is 60° and length of the tangent is
(A) 2 cm (B) 1 cm
(C)
(4) The number of secants can be drawn to a circle from an external point is ......
(A) Infinite (B) 1
(C) 2 (D) 0
(5) The length of the tangent to a circle from a point 17 cm from its centre is 8 cm. Find the radius of the circle.
(6) A point P is 25 cm from the centre O of the circle. The length of the tangent drawn from P to the circle is 24 cm. Find the radius of the circle.
Sec B
(1) In the given figure, 'O' is the centre of a circle, OQ is the radius and OQ = 5 cm. The length of the tangent drawn from external point to the circle PQ = 12 cm, then find the distance between the points 'O' and 'P'.
(2) Draw a circle and two lines parallel to a given line such that one is a tangent and the other is a secant to the circle.

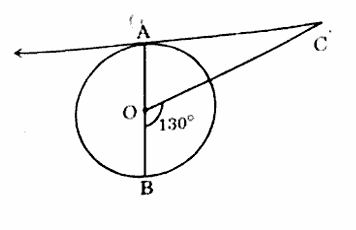

(3) AOB is the diameter of a circle with centre 'O' and AC is a tangent to the circle at A. If ∠BOC = 130°, then find ∠ACO.
(4) In the given figure, TA and TB are tangents to the circle with centre 'O'. If ∠ATB = 80°, then find the measure of ∠ABT.
Sec C
(1) Draw a circle of radius 3 cm. Construct a pair of tangents to the circle from an external point which is at a distance of 8 cm from the centre of the circle.
(2) Draw a circle of radius 4 cm. From a point 9 cm away from it's centre, construct a pair of tangents to the circle.
